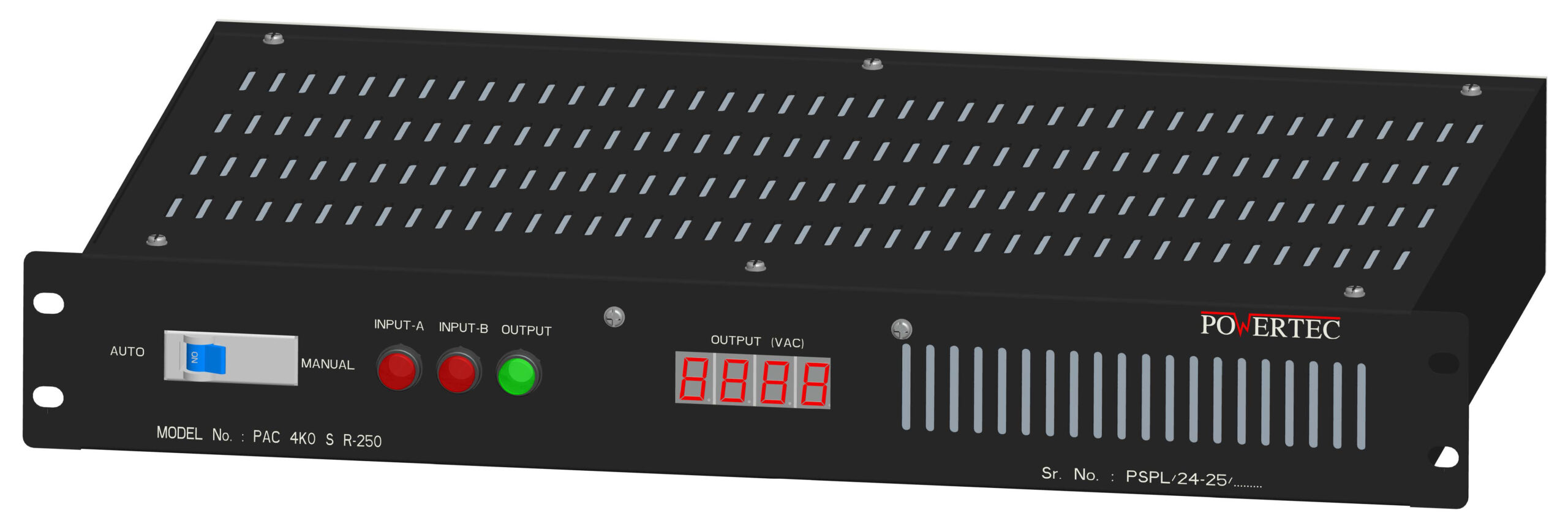

Home /PAC 4K0 S R-250
| Vibration | 10-55Hz, 19.6m/s² (2G) |
| Altitude | 3000Mtr (10000 feet) Max. |
| Mounting | 19" Mounting / Table-Top |
| Depth | 305mm |
| Width | 482.6mm |
| Height | 67mm |
| Weight (unpacked) | <7.0Kg Approx. |
| Input (Dual) | |
|---|---|
| Voltage | 200V-250VAC |
| Current | 16A Apx from Input-A / Input-B |
| Frequency Range | 47 to 63Hz |
| Priority Source | Input-A |
| Typical Transfer Time | <8ms |
| Output | |
| Voltage | 200V-250VAC |
| Current | 16A |
| Capacity in KVA | 4000VA Max. |
| Switching Technology | Thyristor base switching |
| Load Regulation | <2% from no load to full load |
| Power Efficiency | >95% |
| Output Wire Gauge | 10 sq.mm (max.) |
| Indicators and Display | |
| LED Indications | Red LED for Load status A / B & Green for Output |
| Display | DPM For Output VAC |
| Voltage Display | Standard 7 segment LED |
| Auto/Manual | MCB for changing Status of source Auto / Manual |
| Optional | LCD scanning Alphanumeric |
| Protection Standard | Conformance with IEC requirement |
| Lightning and static ESD | Conformance to IEC standards |
| Surge and Burst | Conformance to IEC standards |
| Brownout status | Controlled with 20% deratings |
| Upper/ Lower Voltage | Cutoff, as specified / desired |
| Other features | As per requirement by customer |
| Operating Temperature | -10°C to 65°C |
| Storage Temperature | -20°C to 85°C |
| Relative Humidity | 10-90% RH (Non-Condensing) |
| Cooling | Forced Air (Internal Fan) |
| MTBF | 50000Hrs |
| Input-A, B | Screw Terminal |
| Output | Screw Terminal |
| Input and Output Wire Size | 10 sq. mm (Max.) |
