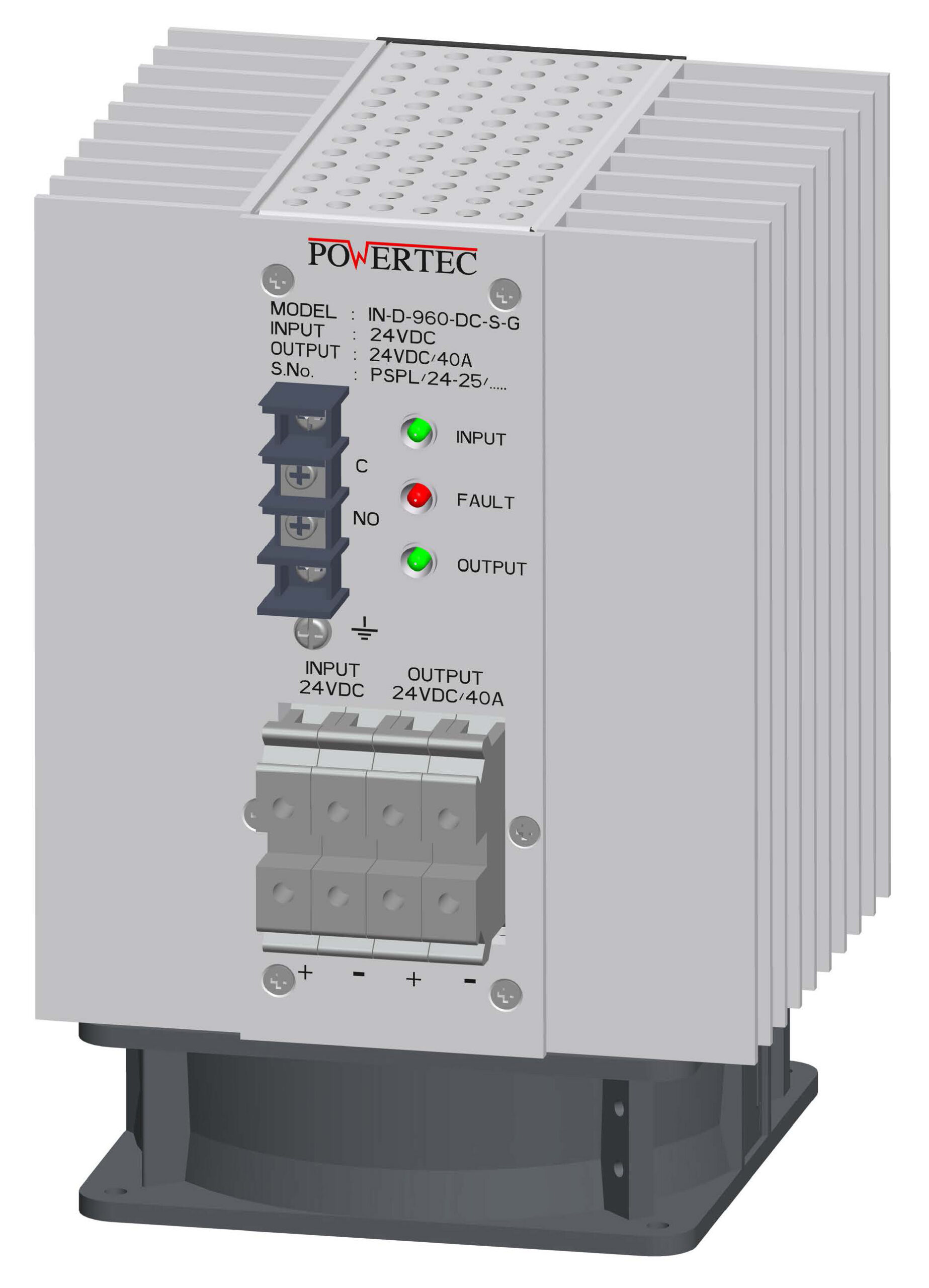

Home /IN-D-960-DC-S-G
| Voltage | 24VDC (18V-36V) |
|---|---|
| Current | 62.5A at Nominal Input 24VDC |
| Isolation |
Input-Case: 500VDC, 30MΩ Input-Output: 500VDC, 30MΩ Output-Case: 500VDC, 30MΩ |
| I/P Protection | Input reverse polarity and over-current by input fuse |
| Inrush Current | <15A typical |
| Switch On Delay | <100mSec |
| Operating Temperature | -20°C to +60°C (Derating > 75°C) |
|---|---|
| Storage Temperature | -40°C to +100°C |
| Relative Humidity | 20-90% RH (Non-Condensing) |
| Cooling | Convection Cooling |
| Voltage | 24VDC (Tolerance ±1%) |
|---|---|
| Current | 40.0A |
| Power | 960W |
| Ripple (mVp-p) | 150 max. (20 MHz bandwidth) |
| Ripple Noise | 120 max. |
| Line Regulation | ≤1% of Vnom. |
| Load Regulation | ≤1% of Vnom. (Exclusive OR-ing Drop max 0.5VDC) |
| LED Indications | DC I/P (Green), DC OK (Green), DC Low/Fault (Red) |
| O/P Voltage Adjustment | 22 to 26VDC |
| O/P Protection | Over-load, short-circuit with O/P power limitation, auto recovery after fault removal |
| Relay Contact | Provided. C, NO: contact short for OK, open for not OK |
| Derating | >85°C |
| OR-ing Diode | Inbuilt for output redundancy and parallel operation. Output voltage set equal up to 2nd decimal |
| Efficiency | >87% between 10% to 100% load (excluding reverse polarity & OR-ing losses) |
| Vibration | 10 - 55Hz, 19.8m/s² (2G) |
|---|---|
| Safety Standards | UL60950-1 Conformance |
| Switching Frequency | 370KHz |
| Mounting | Back Plane / DIN-Rail |
|---|---|
| Enclosure | Cabinet IP42 |

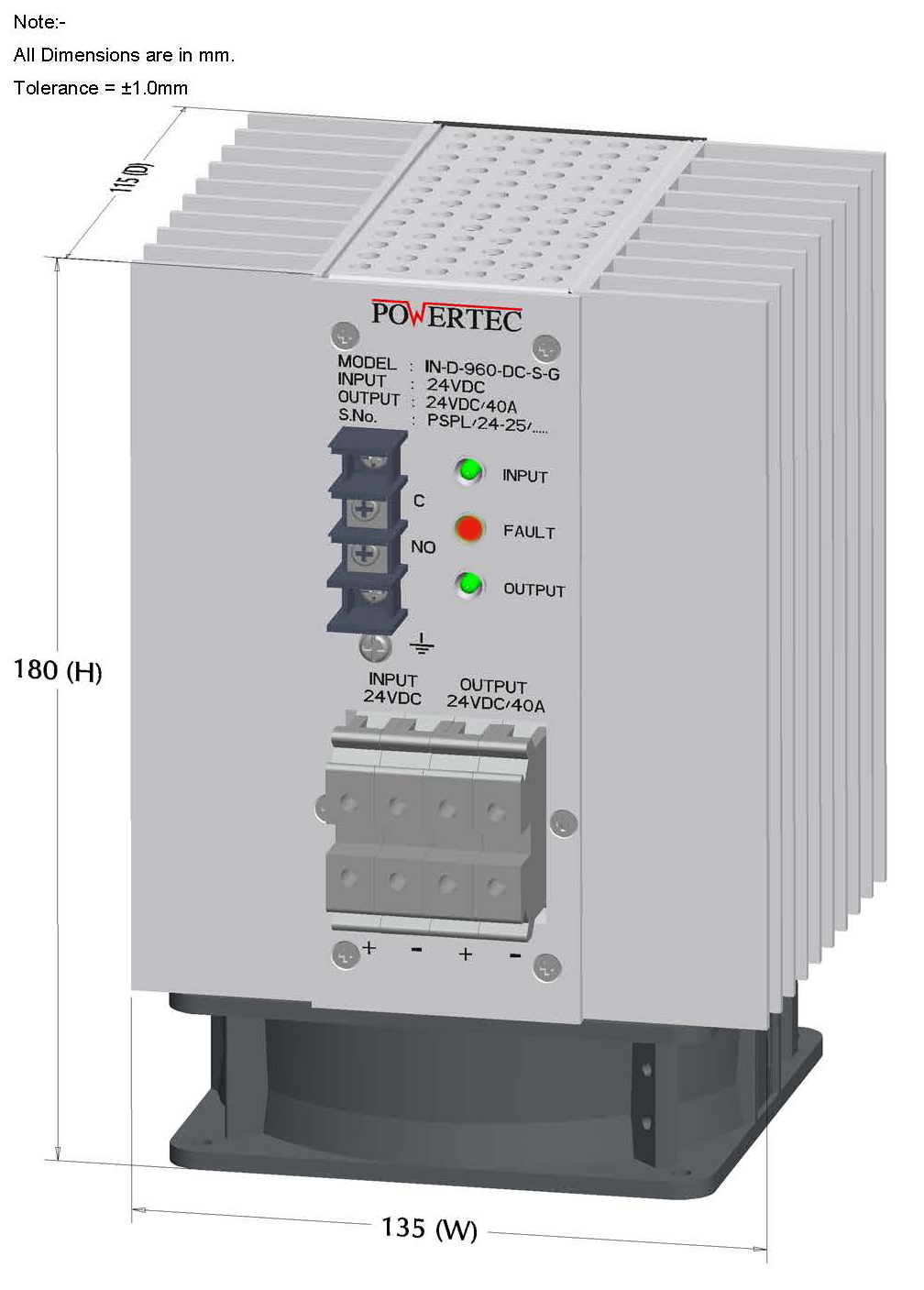

| Depth | 115mm |
| Width | 135mm |
| Height | 180mm |
| Weight | <2.5Kg Approx. |
| Connectors | Screw Terminals |
