| Vibration | 10 - 55Hz, 19.6m/s² (2G) |
| Safety Standards | Design conforms to UL60950-1 |
| Surge | EN61000-4-5 |
| ESD | 15KV Air discharge, 8KV contact discharge |
| Emitted RF Interference | EN 55011 (EN55022) Class-B |

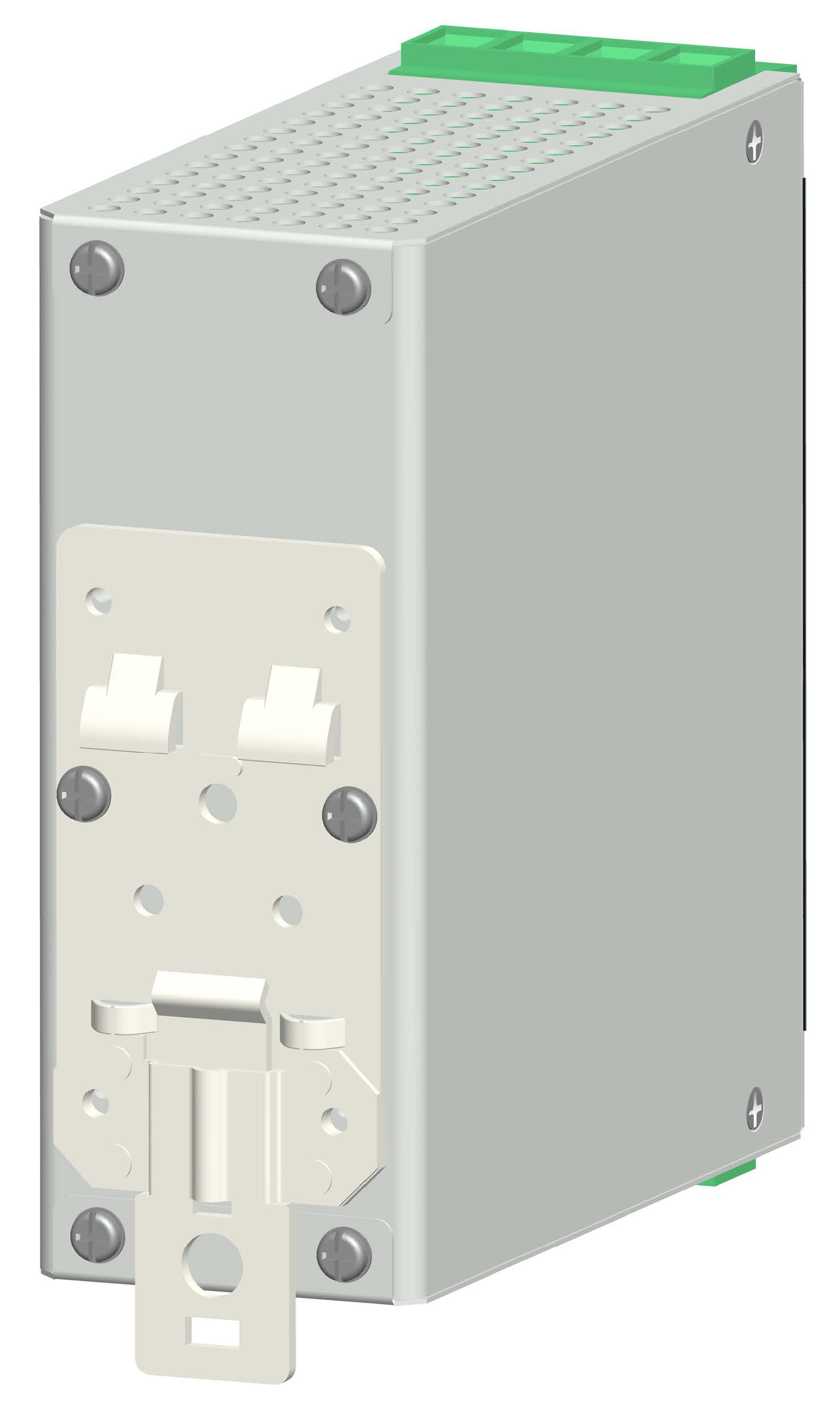

| Mounting | Din-Rail Mounting |

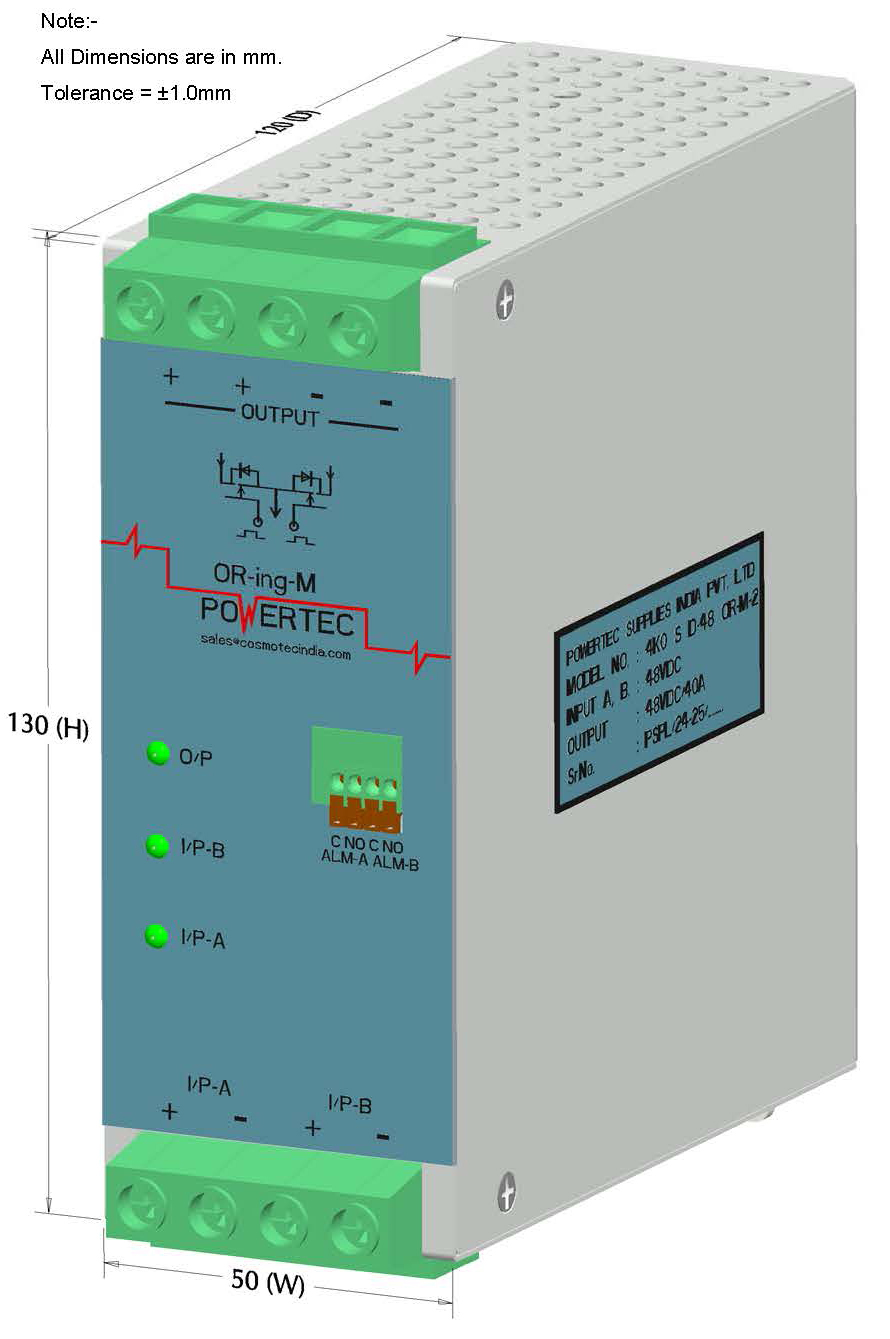

| Depth | 120mm |
| Width | 45mm |
| Height | 130mm |
| Material |
Aluminium Chassis (Environment protected) Ventilated cover 35mm DIN clamp MS |
| Weight (Unpacked) | 0.6Kg |
| Input A Voltage | 48.0 VDC |
| Input B Voltage | 48.0 VDC |
| Voltage Range | 40-55 VDC |
| Current | 40A (each input) |
| Isolation |
Input-Output: Positive Side Input-Case: 500V Output-Case: 500V |
| Leakage Current | 100mA max. |
| Output Voltage | 48.0VDC (as per input range) |
| Output Current | 40A at Redundant / 80A at Power Share |
| Power | 4KW max |
| Input to Output Voltage Drop | <350mV @ 40A, <450mV @ 80A |
| Power Loss |
5W max (Iout = 0A) 12W max (Iout = 40A) 24W max (Iout = 80A) |
| LED Indications | Input A, Input B, Output (All Green) |
| Response Time | 50ns |
| Input Reverse Polarity | Protected < 45VDC |
| Efficiency | >97±1% at full load |
| Power Good Contact |
DC input OK provided for Health: C, NO Normally closed Input fault/unavailable: C, NO open Contact current: 5A |
| Input | Screw Terminals (40A rated), Single + & - terminal |
| Output | Screw Terminals (40A rated), Dual fan out + + & - - terminal |
| Power Good / PFC | Screwless lock type, 5A rated, C, NO for Input-A & Input-B |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 20-95% RH (Non-condensing) |
| Cooling | Convection Cooling |
| Degree of Protection | IP20 |
| Class of Protection | CLASS III |
