| Vibration | 10 - 55Hz, 19.6m/s² (2G) |
| Safety Standards | Design conforms to UL60950-1 |
| Mounting | Din-Rail Mounting |

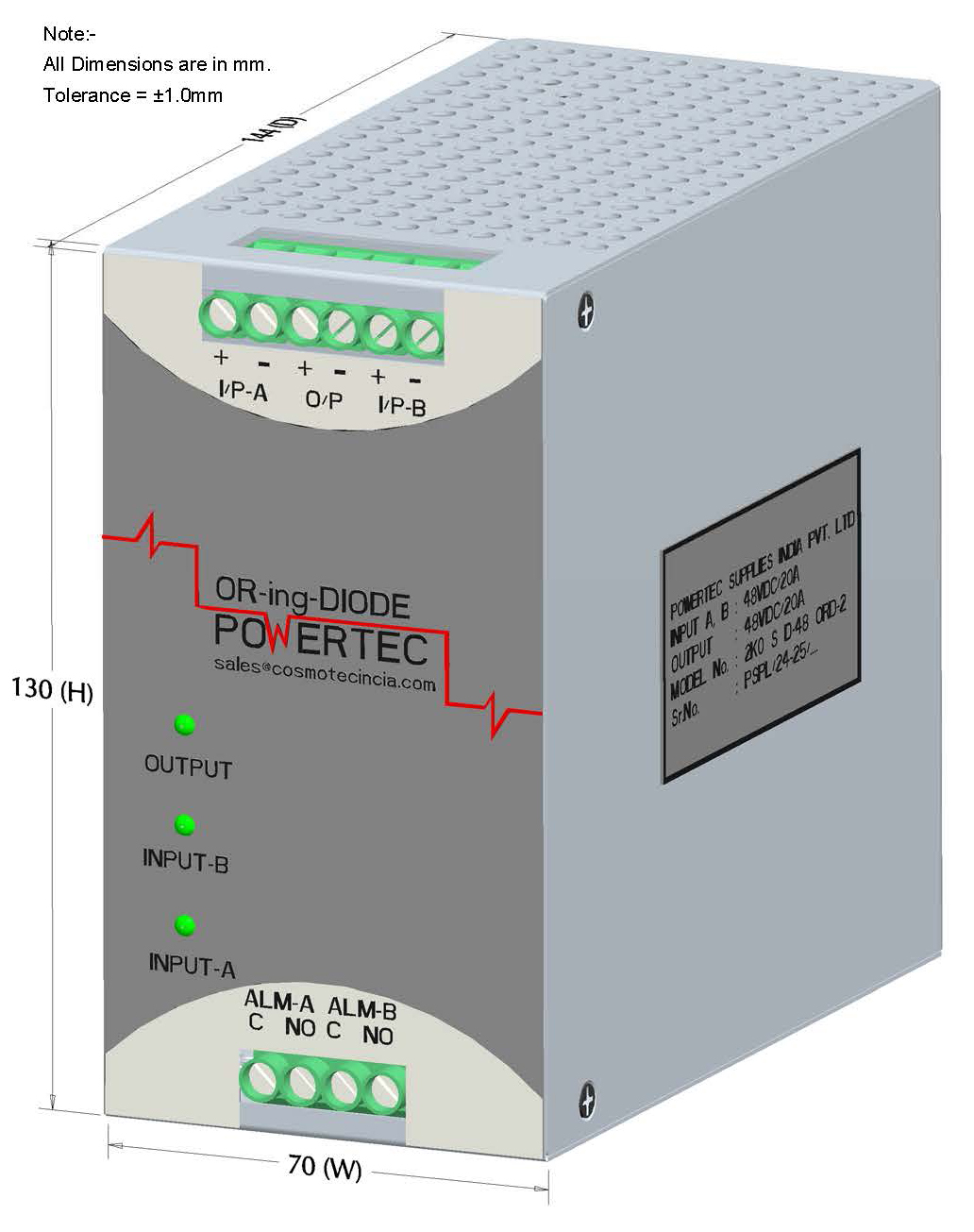

| Depth | 144mm (Without Din clamp) |
| Width | 70mm |
| Height | 130mm |
| Weight (Unpacked) | 0.7 Kg |
| Input A Voltage | 48VDC ±10% |
| Input B Voltage | 48VDC ±10% |
| Input Current | 20A |
| Isolation |
Input-Output: Positive Side Input-Case: 2000VAC Output-Case: 500VAC |
| Leakage Current | 200mA max. |
| Output Voltage | 48VDC ±10% |
| Output Current | 20A |
| Power | 1920W max (Redundant mode) |
| Line Regulation | 1% of Vnom |
| Load Regulation | 1% of Vnom (OR-ing drop 500mV Exclusive) |
| LED Indications | Input A (Red), Input B (Red), Output (Green) |
| Response Time | 50ns |
| Input Reverse Polarity | Protected |
| Efficiency | >95% at full load |
| PFC Contact |
Provided for Input-A & Input-B: Contact C, NO closed for OK Contact C, NO open for abnormal Contact rating: 5A @ 230VAC |
| Connectors | Screw Terminals |
| Operating Temperature | -20°C to +70°C |
| Relative Humidity | 20-90% RH (Non-condensing) |
| Cooling | Convection Cooling |
